Hospital Elevators
Bed and stretcher lifts sized around a trolley and the people pushing it, not around a person count. The standard 1600 kg car is 1400 x 2400 mm with a 1100 mm opening, in a 2500 x 2900 mm shaft with a machine room or 2650 x 2900 mm without, 1500-1800 mm pit and 4600-5000 mm overhead. Wide-opening variants take the door to 1300 mm and the car depth to 2100 mm for direct stretcher access. Ride quality and levelling accuracy matter more here than speed.
Where it is used
- Hospitals and clinics
- Care and rehabilitation facilities
- Diagnostic and imaging blocks
- Any building needing trolley or bed access
Formats and options
- 1600 kg standard; 1400 x 2400 mm car
- 1100 mm opening, 1300 mm wide-opening option
- 2500 x 2900 mm shaft with machine room
- 2650 x 2900 mm machine-room-less

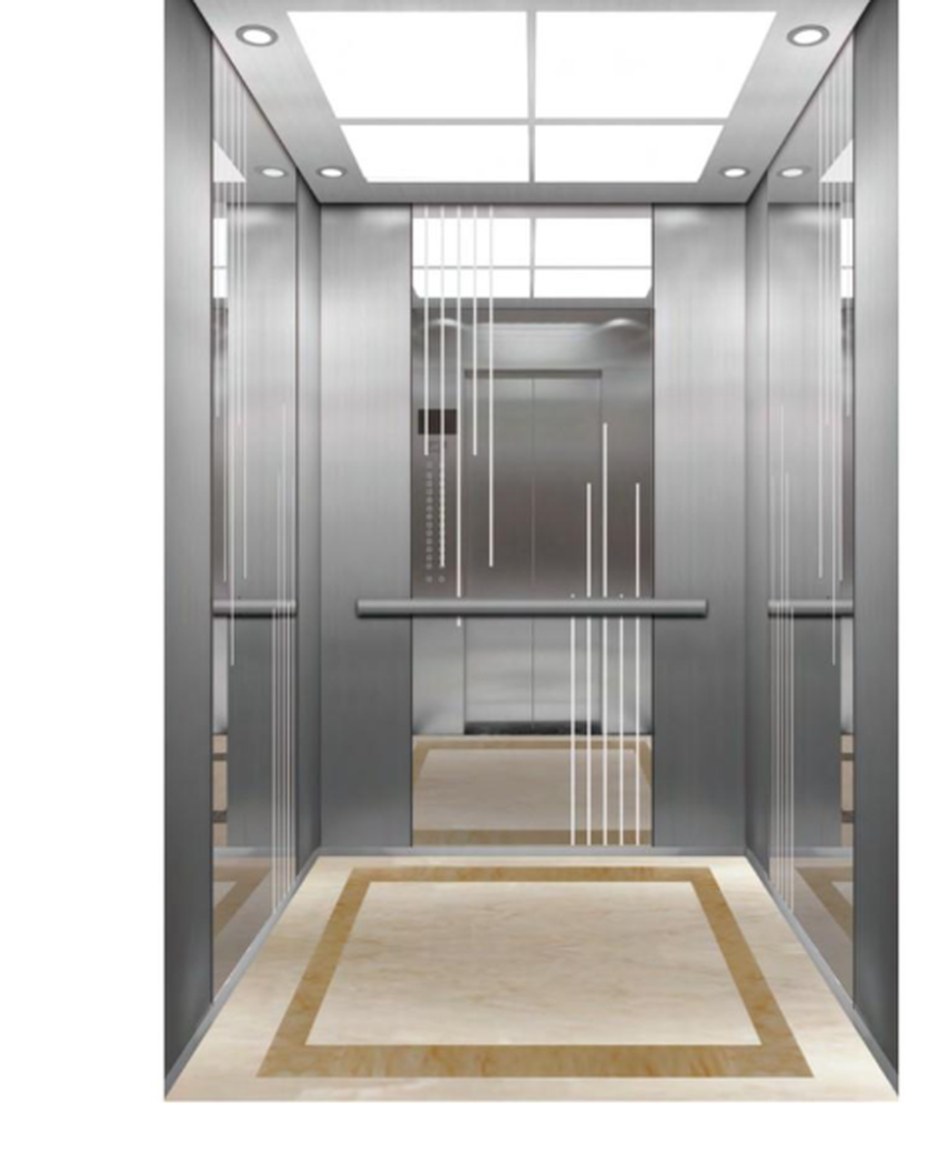

- Antibacterial stainless steel car linings
- Availability
- Supply and install, with maintenance
- Category
- Elevators & Lifts
- Pricing
- Quoted per project — depends on quantity, finish and site
